Drop impact · the trapped air film
Open the notebookInside the dataset
Dataset source filesWhat this dataset shows
High-speed cameras capture a drop striking a smooth surface. Three views let you inspect the drop shape and the thin air film underneath it.

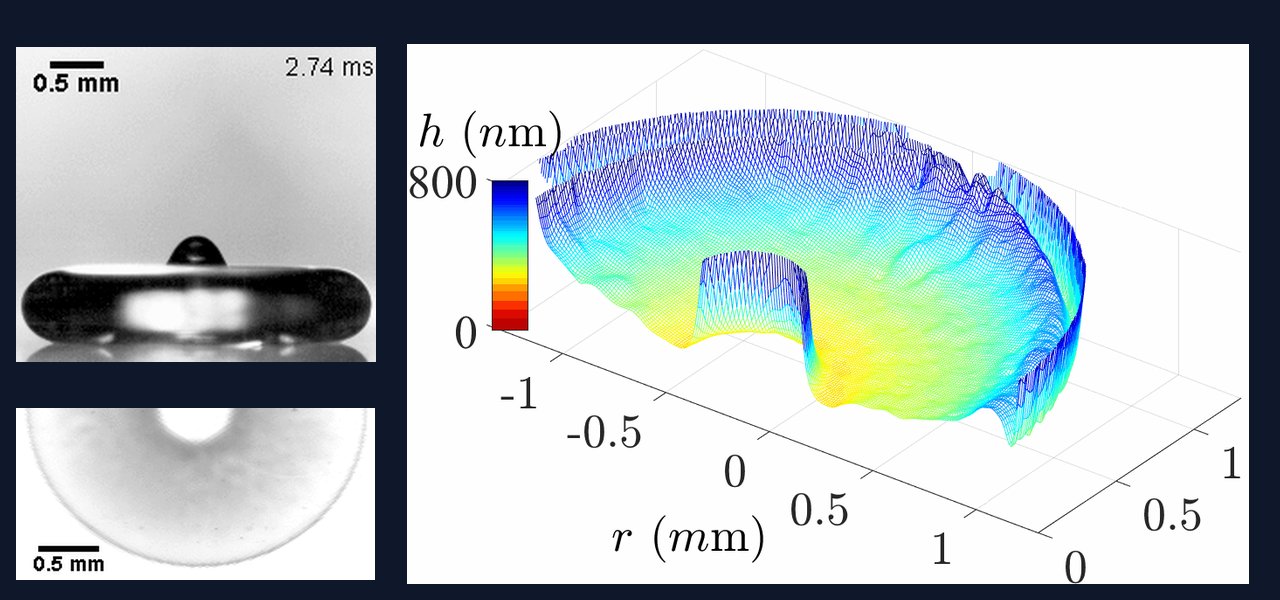

1 cP · We 3.6. Simultaneous side view and TIRM measurements, with air-film thickness reconstructed from the TIRM view.
Choose a recording or figure
1 of 3

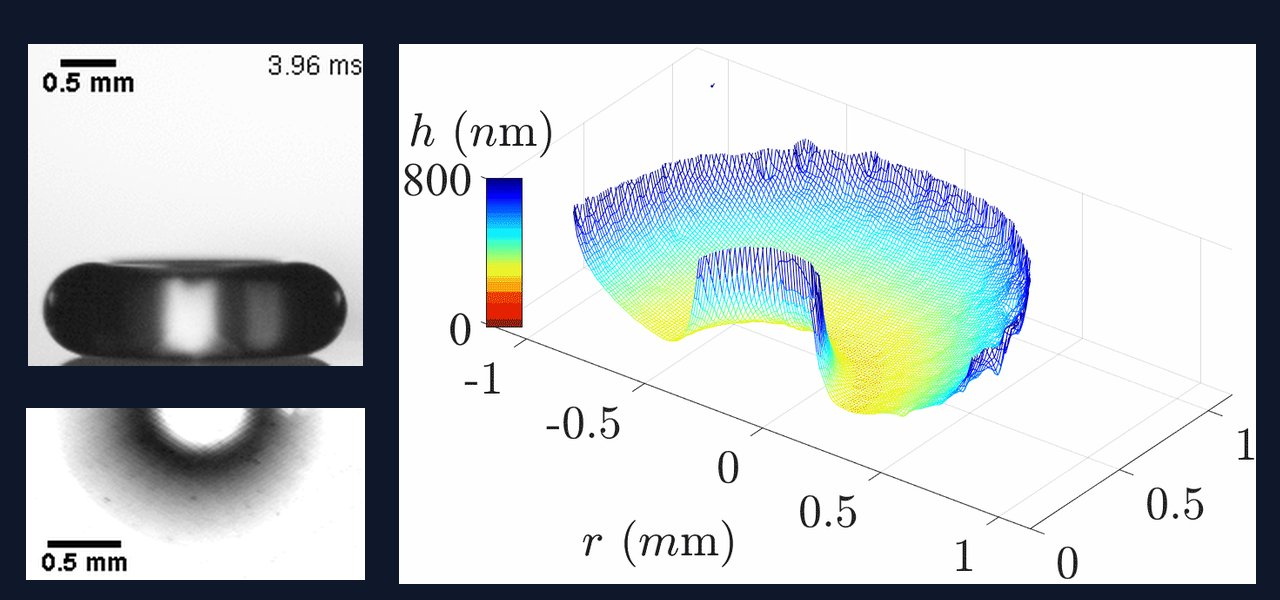

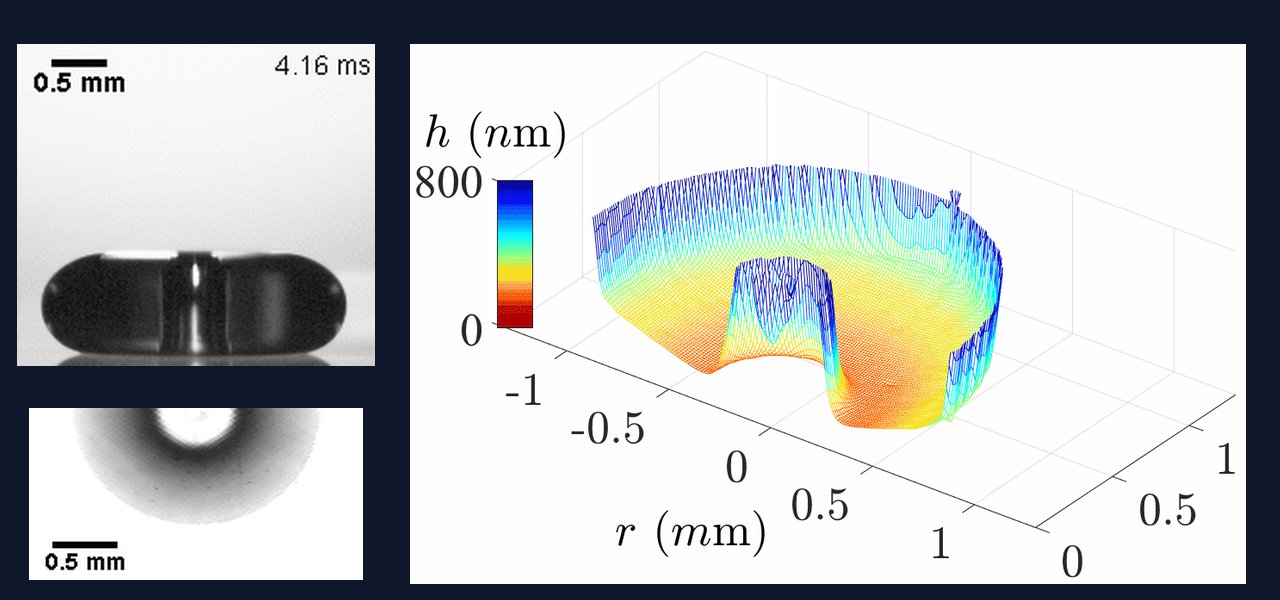

Select 1, 3 or 10 cP to compare separate recorded impacts. cP measures viscosity; Weber number compares inertia with surface tension. The original timestamps and scale bars stay visible.
Source and processing
Original file: mul_1cP_We_3p6_sideview.gif
The published source files used here do not include an acoustic recording, so acoustic video, spectrogram and waveform views are not offered.
