Research dataset

Flow condensation · acoustic measurements

Open the notebook

Inside the dataset

Dataset source files

What this dataset shows

This dataset observes condensation with acoustic and thermofluid sensors. Its visualizations show what the sensors measured inside the experiment.

Watch the recorded signal unfold

Condensation · inlet AE hit 60 · vapor quality 0.60 · 7.168 milliseconds from one acoustic-emission hit.

Measured channel 1

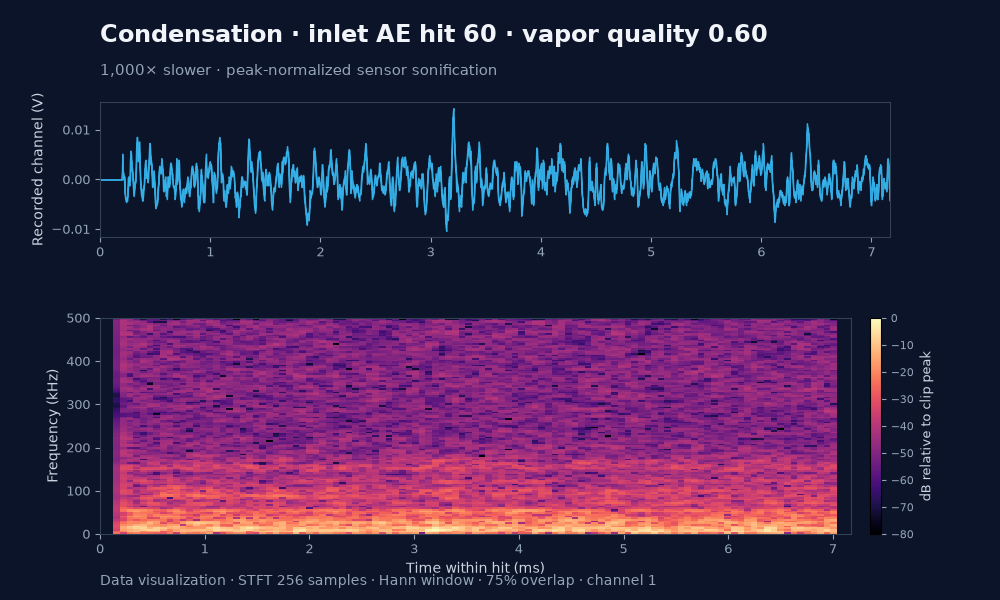

Condensation · inlet AE hit 60 · vapor quality 0.60. Waveform, frequency map and playback cursor use the same recorded channel. View original source

Time →

Read from left to right. The moving cursor connects the waveform and frequency map at the same moment.

Frequency ↑

Lower frequencies appear near the bottom of the map; higher frequencies appear above. A narrow bright band means power is concentrated in a small frequency range.

Color = relative power

Brighter colors show more power relative to the strongest part of this clip. Colors are not an absolute measure of loudness and should not be compared across datasets.

Listen to normalized sensor playback · 1,000× slower

Unmute the player to listen. The signal is centered and its volume is normalized for playback. This ultrasonic hit is slowed so that its changing pattern can be heard; the plots still show the original time and frequency. Playback volume is not calibrated sound pressure.

The published files contain sensor recordings rather than an optical movie of the condensing flow.

Original acoustic sourceMeasured samples (CSV)Spectrogram image
How this view was made

7,168 measured samples · 1,000,000 samples per second · channel 1 · original units: V.

The spectrogram uses a Hann window of 256 samples with 75% overlap. Colors show spectral power in dB relative to this clip’s peak, not calibrated sound pressure level.

Acoustic waveform, spectrogram and sonification share one clock. Optical-to-acoustic frame alignment is not established by the published preview metadata.

Acoustic video, spectrogram and waveform use the same measured samples. Optical recordings are shown separately; frame alignment with the acoustic clip is not established.

Browse all source visuals

Acoustic data: replay, spectrograms and charts

Computed from this dataset's acoustic emission (AE) recordings at the condenser inlet, for three tests at an nPFH flow of 10.0 g/s, cooling water 25 g/s, vertical downflow and 18.9 psia. Nothing is simulated.

Files

Pick tags to filter this dataset's files, or search by name. Tick the files you need, then download them.

Tags

Click tags to filter the files in the table below. Click a tag again to remove it.

nPFH flow rate
Inlet vapor quality
About this dataset
condensation › flow condensationdielectric › nPFHaerospace › microgravityexperimentalacoustic emissionaccelerometertemperature recordsREADME

Showing 118 of 118 files · 0 selected ·
